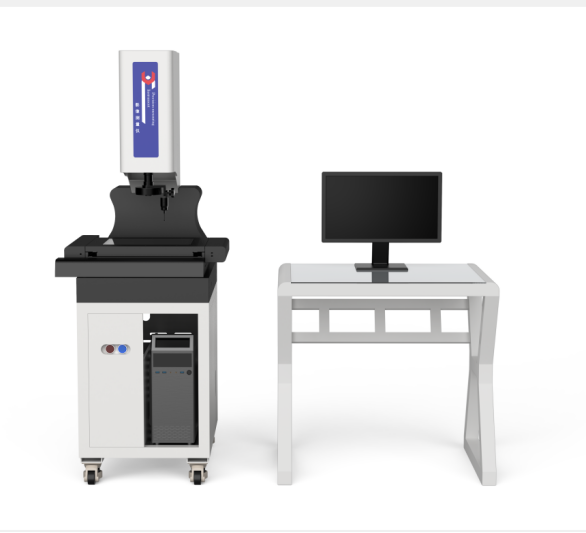

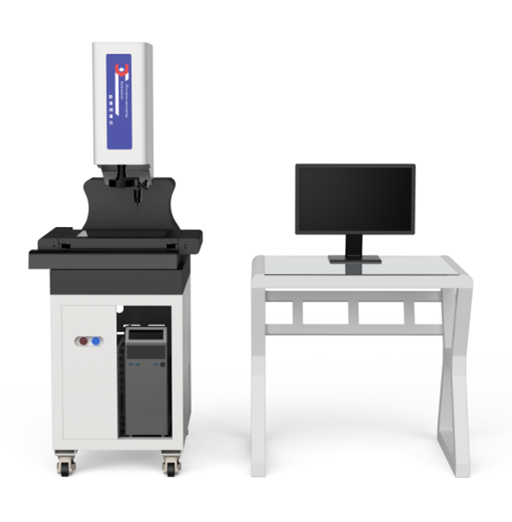

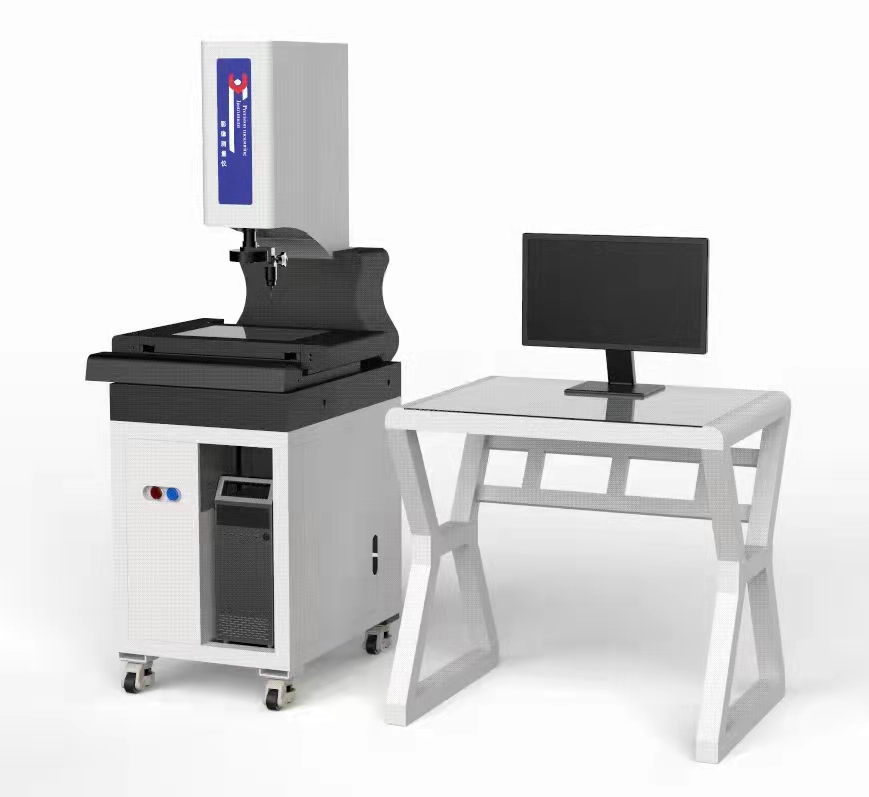

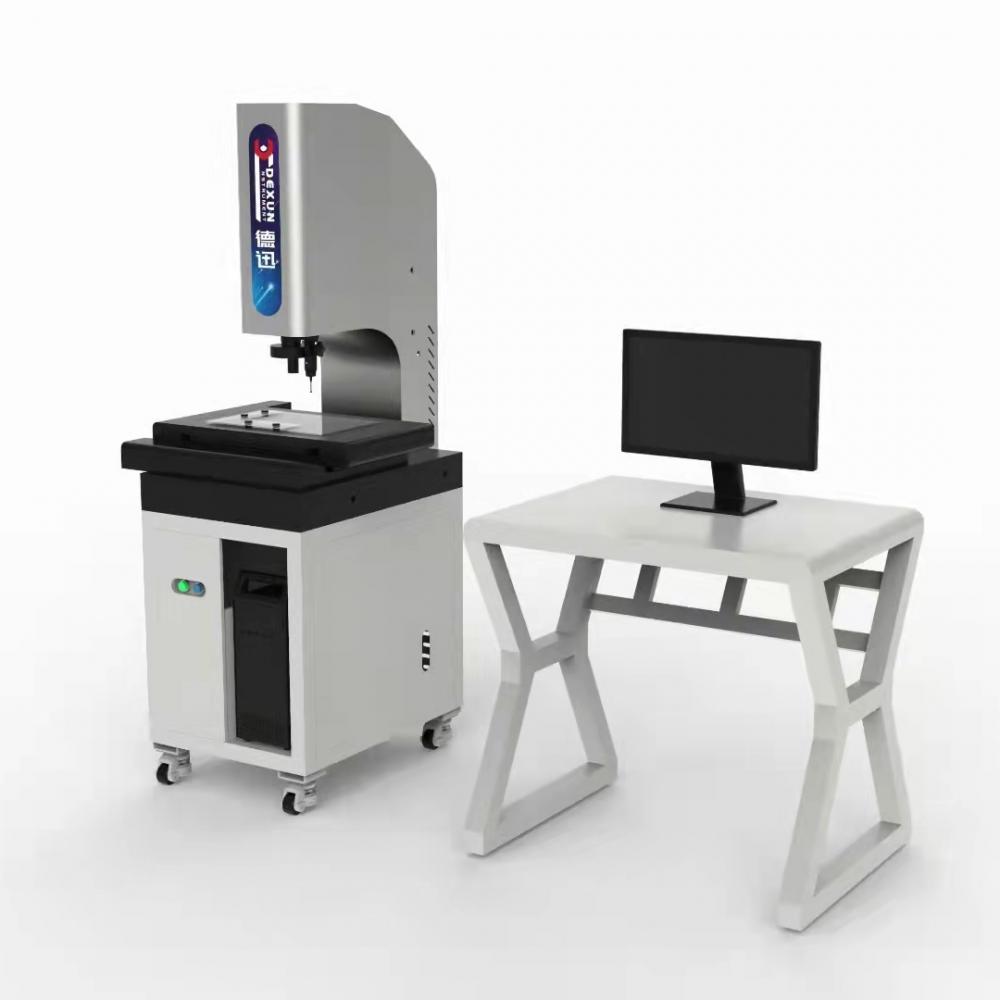

3D Video Measuring Instrument

Model No.: CNC6050

Brand: DEXUN

Certification: Reach, Scoc

Support Customization: Obm, Odm

Place Of Origin: China

Measuring Range: 600*500*200

Overall Dimensions: 880*980*980

The full-automatic anime image Measuring Instrument is based on the CCD digital image, relying on the computer screen measurement technology and the powerful software capability of spatial geometry operation. After installing the computer with remarkable control and graphic measurement software, it becomes a measurement brain with software soul and is the main body of the entire equipment. It can quickly read the displacement value of the optical ruler and obtain the desired result instantaneously through software module operation based on space geometry. Graphics are generated on the screen for the operator to compare images and images so that the possible deviation of measurement results can be visually distinguished. All this is done in real-time in the face of mighty computer computing power, and the operator himself cannot detect it. This kind of precision instrument that can use CCD digital images through computer software operation to meet the needs of complex measurement is the actual image measuring instrument, anime.
A fully automatic image-measuring instrument, which is an advanced stage of image measurement technology, is brilliant and automatic. The performance of its software and hardware makes the coordinate size measurement convenient and comfortable. It has an automatic learning function based on machine vision and process control. Relying on the high-speed and accurate micrometer-level displacement of digital instruments, it can self-learn and memorize the path of the measurement process, focusing, point selection, function switching, manual correction, light matching, and other operating methods. The full-automatic image measuring instrument can quickly learn all the operator's practical operation processes and achieve artificial intelligence by combining its automatic focusing, area search, target locking, edge extraction, and fuzzy operation of rational matching points. It can automatically correct the deviation caused by workpiece and displacement differences and achieve accurate point selection with high precision repeatability. Thus, the operators can be freed from the monotonous operations such as accurate visual alignment, frequent point selection, repeated displacement, function switching, and increasingly heavy tasks to be tested, and improve the efficiency of workpiece batch testing hundreds of times to meet the needs of industrial sampling inspection and mass testing.

CNCis a series of Gantry CNC video measuring machines, which arespeciallydesigned for large size measurement. The largest measurement range can reach400×500mm, and can be applied in the industries of PCB, LCD, sheet metal, civil aviation and space industries, etc. VMG integrates the industry’s most advanced design concepts. The accuracy and stability of the machine can be ensured well on account of the most perfect design and strict controls during production.

Instrument characteristics：

1.Moving bridgestructure,Automatic large volume measurement, four-axis CNC control.

3.Easily operated with mouse and joystick.

4.SIPOINlinear scales with high accuracy and stability.

5.World’s leadingoptical lens for programmable zoom measurement.

6.Programmable surface light (5rings 8 octants, 48 sectors), LED profile light.

7.Automatic focus for height measurement. Touch probe can be added on demand.

8.PowerfulZONSON2DCNC metrology software.

9.Provide various standard configurations, customized versions are also available on demanded.

It can test the geometric element, including point, line, circle, arc, spline, ellipse, rectangle, slot, ring circle ,gap, distance, point list, etc.
