Electronic Measuring Instrument Dimension Measurement
Product Attributes
Model No.: DX-3020
Brand: DEXUN
Certification: Reach, Scoc
Support Customization: Odm, Oem, Obm
Place Of Origin: China
Measurement: 300*200
Overall Dimensions: 660*560*960
Measurement Accuracy: （3+L/200）μm
Packaging & Delivery
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden case binding |
| Picture Example | : |
Full automatic image measuring instrument
Fully automatic video measuring instrument
Product Description

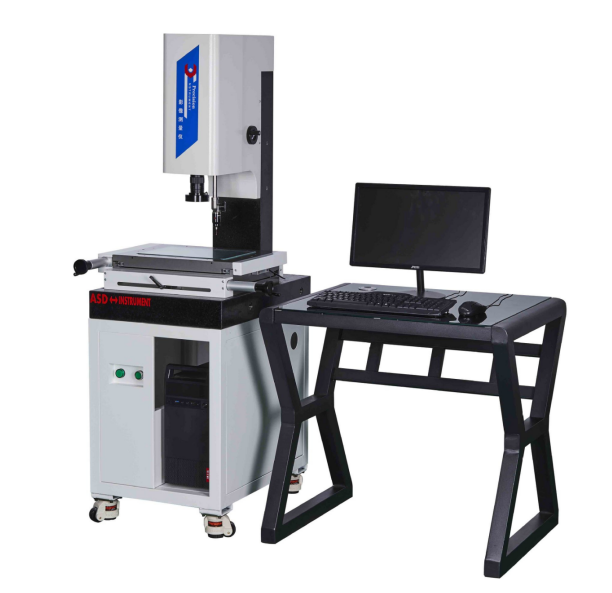

Manual image Measuring Instrument is a type of image measuring instrument, which adopts manual driving for the 3-axis system. The measurement software is a precision measurement instrument that manually selects points.
The manual measuring instrument (two-dimensional) is a high-configuration and low-price measuring equipment. The instrument mainly measures two-dimensional coordinates, including points, lines, circles, arcs, rectangles, and other geometric elements as well as the length, angle, and contour of parts. Appearance, surface shape, etc. It can also perform three-dimensional auxiliary measurements, such as step height, hole depth, surface flatness, etc. Widely used in machinery, electronics, instrumentation, plastics, hardware, and other industries.
Features:
1. High-precision and high-strength machine: 00-grade marble base/column/workbench, high precision, and good stability.
2. XYZ three-axis imported precision V-shaped guide rail/imported optical axis transmission system has a long life span and good stability.
3. High-precision grating ruler 0.5 μm .

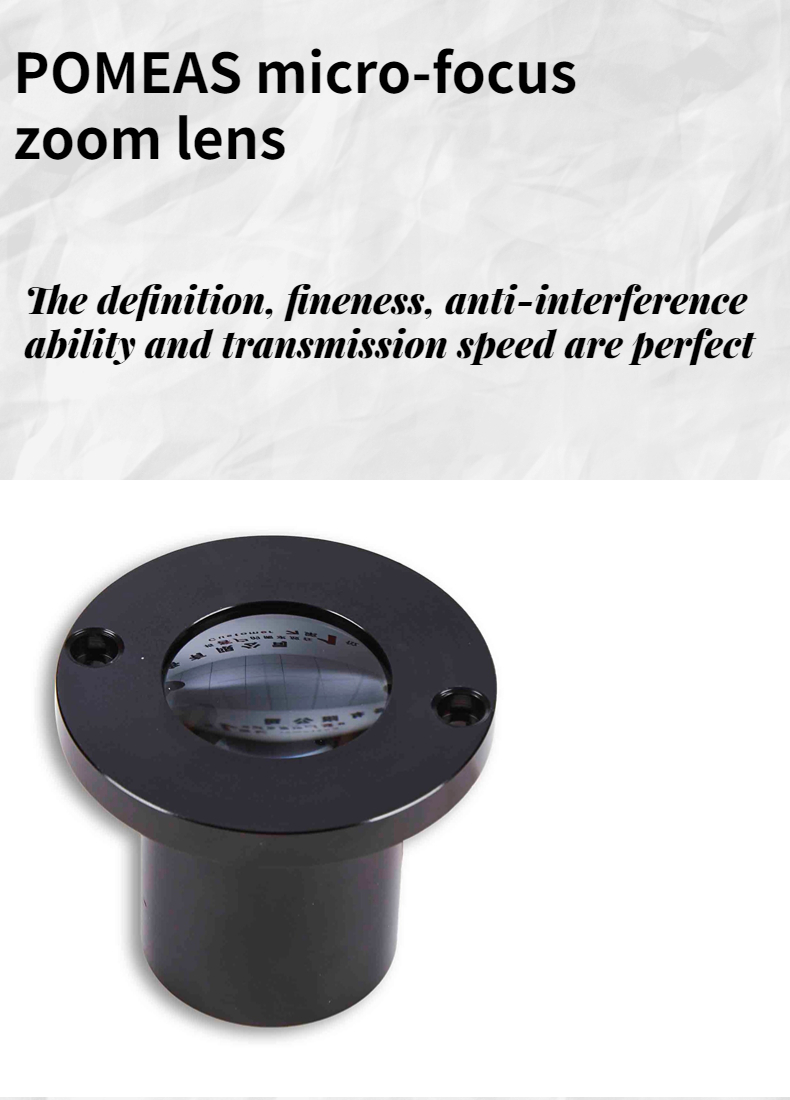

4. WM continuous zoom optical lens, different magnifications at different stops, no need for zoom correction.
5. High-definition Japanese SONY CCD camera, high-quality measurement images.

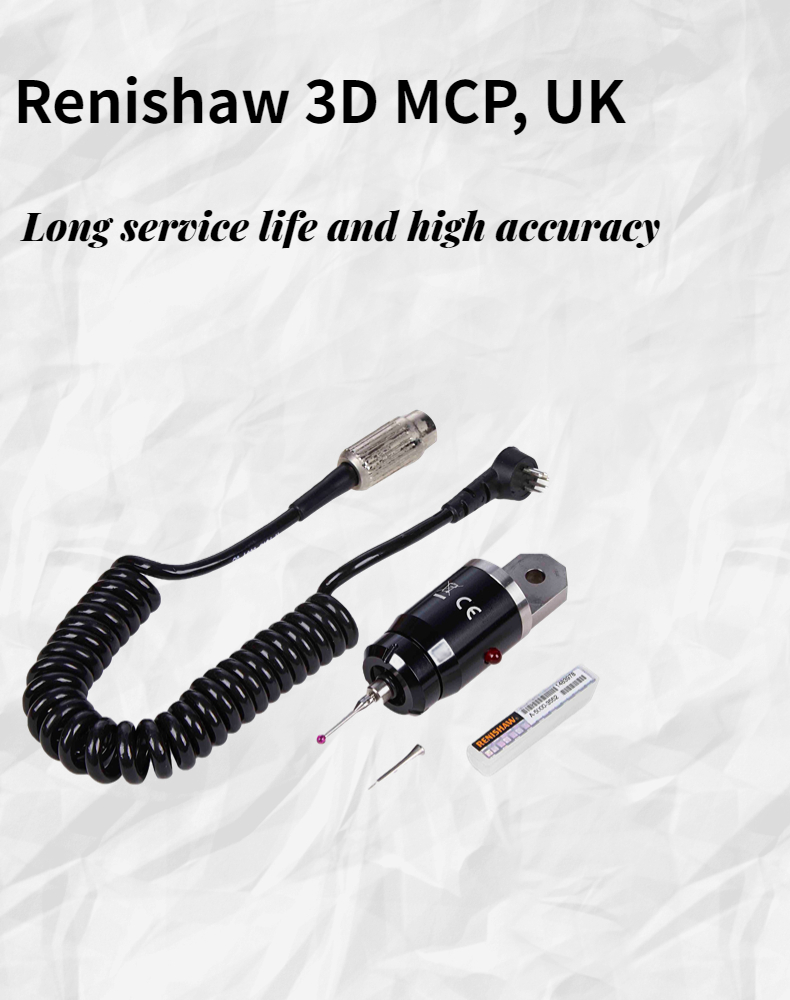

6. Auxiliary focus measurement, optical height measurement, and flatness measurement can be equipped with a British RENISHAW contact probe.
7. Surface light source, LED contour light source, coaxial light source. Optional program-controlled three-ring eight-zone light source.
8. The laser pointer indicates the measurement position for quick positioning and convenient measurement.
9. It can be equipped with a foot switch to facilitate operation at any position.
Manual image measuring instrument
Compared with similar products, the measuring projectors produced by our company have the following characteristics:
The instrument can efficiently detect the contour and surface shape of various complex workpieces, such as: templates, stampings, cams, spiral spinning, gears, forming milling cutter and other tools, tools and parts, as well as terminals, clocks, diamonds, etc.
More widely used, it is widely used in machinery, mold, instrument, electronics, light industry and other industries, and it is an indispensable measuring verification equipment for measurement rooms and production workshops.
Instrument measurement accuracy: (3+L/200) μ m
X, Y coordinate resolution: 1 μ m
The instrument can efficiently detect the contour and surface shape of various complex workpieces, such as: templates, stampings, cams, spiral spinning, gears, forming milling cutter and other tools, tools and parts, as well as terminals, clocks, diamonds, etc.
More widely used, it is widely used in machinery, mold, instrument, electronics, light industry and other industries, and it is an indispensable measuring verification equipment for measurement rooms and production workshops.
Instrument measurement accuracy: (3+L/200) μ m
X, Y coordinate resolution: 1 μ m
Data processing system: multi-function data processing system, full Chinese display can do multi-point sampling, coordinate rotation, point, line, distance, angle detection RS-232 data output, can be directly imported into CAD.
