High precision optical projector size measuring instrument
Product Attributes
Model No.: DZX4030G
Brand: DEXUN
Certification: Reach, Scoc
Support Customization: Obm, Odm
Place Of Origin: China
Measurement: 400*300*200
Overall Dimensions: 680*780*980
Packaging & Delivery
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden case binding |
| Picture Example | : |
Packaging and Shipping Record
Product Description
The semi-automatic image Measuring Instrument means that the Z-axis can focus automatically: the software can automatically determine the focusing surface, ensure the accuracy of each focusing, reduce the error value caused by human factors, improve the reproducibility of focusing, make the image after focusing the most clear, further improve the accuracy of subsequent measurement, and can insert an automatic focusing program during the programming process, eliminate the possible series of error values of batch products, and enter the operating program.
It is a measuring equipment with high configuration and low price between CNC automatic measuring instrument and TLS manual measuring instrument. The instrument mainly focuses on two-dimensional coordinate measurement, including geometric elements such as point, line, circle, arc, rectangle, and length, angle, contour, surface shape of parts. It can also be used for 3D auxiliary measurement, such as height of steps, depth of holes, flatness of surfaces, etc. Widely used in machinery, electronics, instrumentation, plastics, hardware and other industries.
Product features:
1. High precision overall measurement, Z-axis CNC control.
2. High precision and high strength machine: Class 00 marble base/column/workbench, high precision and good stability.
3. XYZ three-axis imported precision linear guide rail/imported grinding ball screw drive system has long service life and good stability.
4. High precision grating ruler 0.5um.
5. WM continuous zoom optical lens, different freeze frames and different magnification, without zoom correction.
6. High definition Japanese SONY CCD camera, high quality measurement picture.
7. Auxiliary focusing measurement, optical height measurement and flatness measurement can be added with British RENISHAW contact probe.
8. Programmed three ring eight zone surface light source, LED contour light source, coaxial light source. Different products are equipped with different color light sources.
9. The laser indicator indicates the measuring position, which is fast and convenient for measurement.
Semi automatic image measuring instrument
Compared with similar products, the measuring projectors produced by our company have the following characteristics:
The instrument can efficiently detect the contour and surface shape of various complex workpieces, such as: templates, stampings, cams, spiral spinning, gears, forming milling cutter and other tools, tools and parts, as well as terminals, clocks, diamonds, etc.
More widely used, it is widely used in machinery, mold, instrument, electronics, light industry and other industries, and it is an indispensable measuring verification equipment for measurement rooms and production workshops.
Instrument measurement accuracy: (3+L/200) μ m
X, Y coordinate resolution: 1 μ m
Data processing system: multi-function data processing system, full Chinese display can do multi-point sampling, coordinate rotation, point, line, distance, angle detection RS-232 data output, can be directly imported into CAD.
The instrument can efficiently detect the contour and surface shape of various complex workpieces, such as: templates, stampings, cams, spiral spinning, gears, forming milling cutter and other tools, tools and parts, as well as terminals, clocks, diamonds, etc.
More widely used, it is widely used in machinery, mold, instrument, electronics, light industry and other industries, and it is an indispensable measuring verification equipment for measurement rooms and production workshops.
Instrument measurement accuracy: (3+L/200) μ m
X, Y coordinate resolution: 1 μ m
Data processing system: multi-function data processing system, full Chinese display can do multi-point sampling, coordinate rotation, point, line, distance, angle detection RS-232 data output, can be directly imported into CAD.

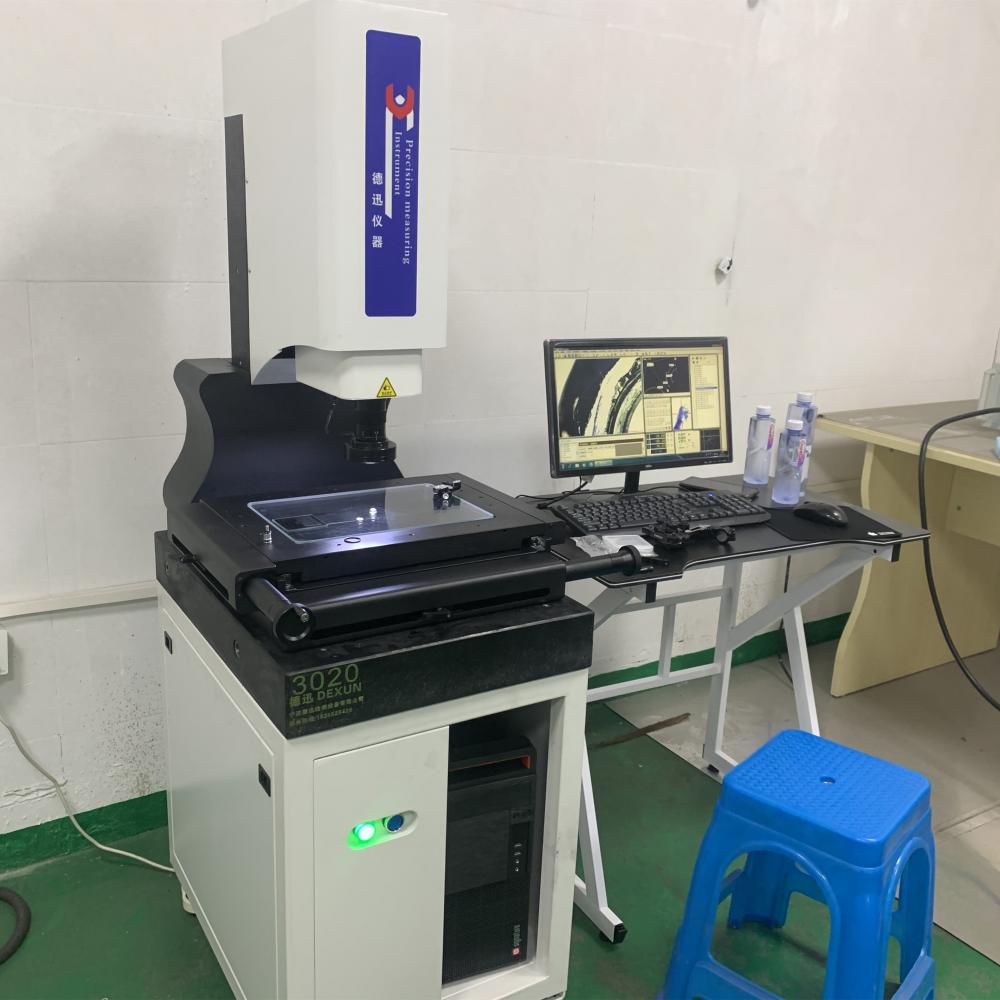

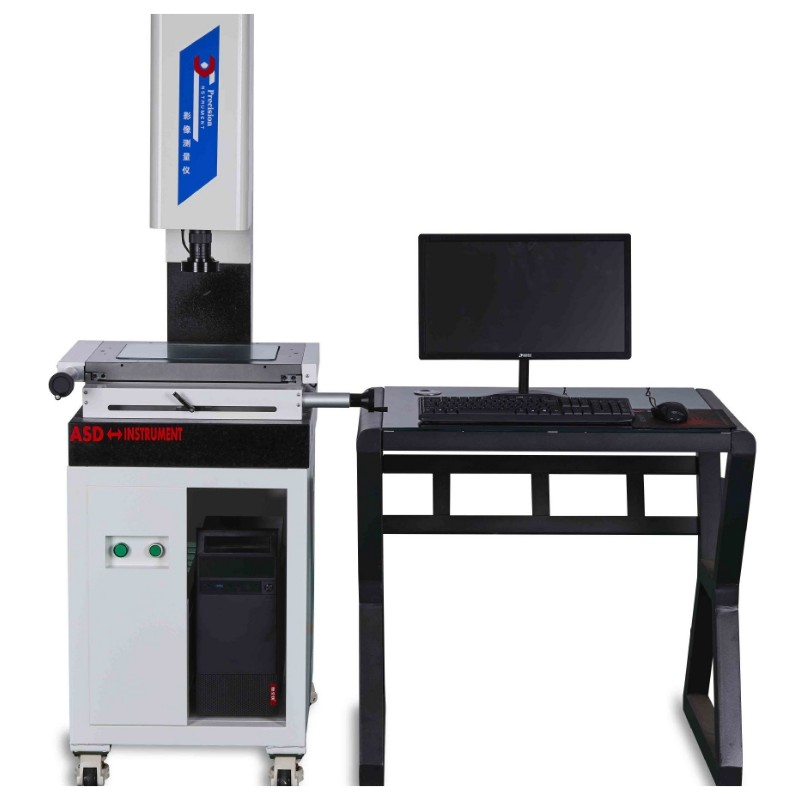

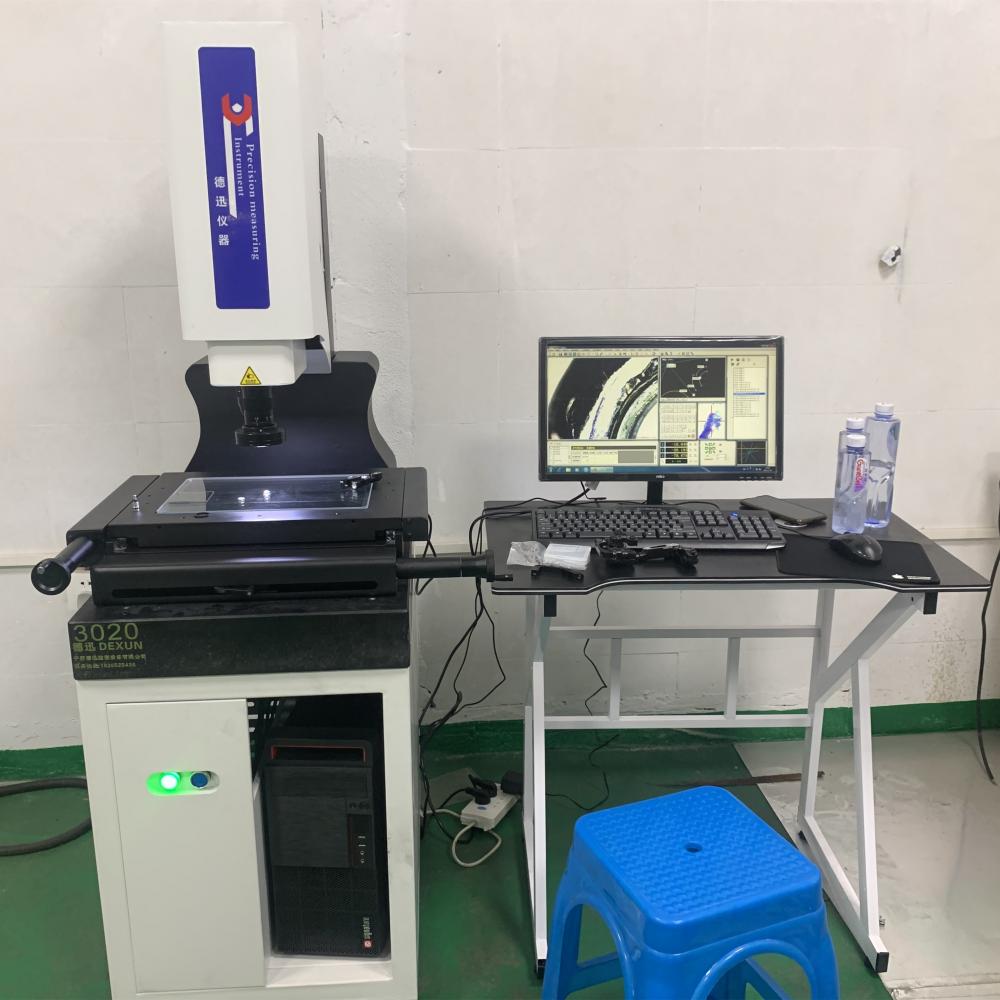

Product pictures

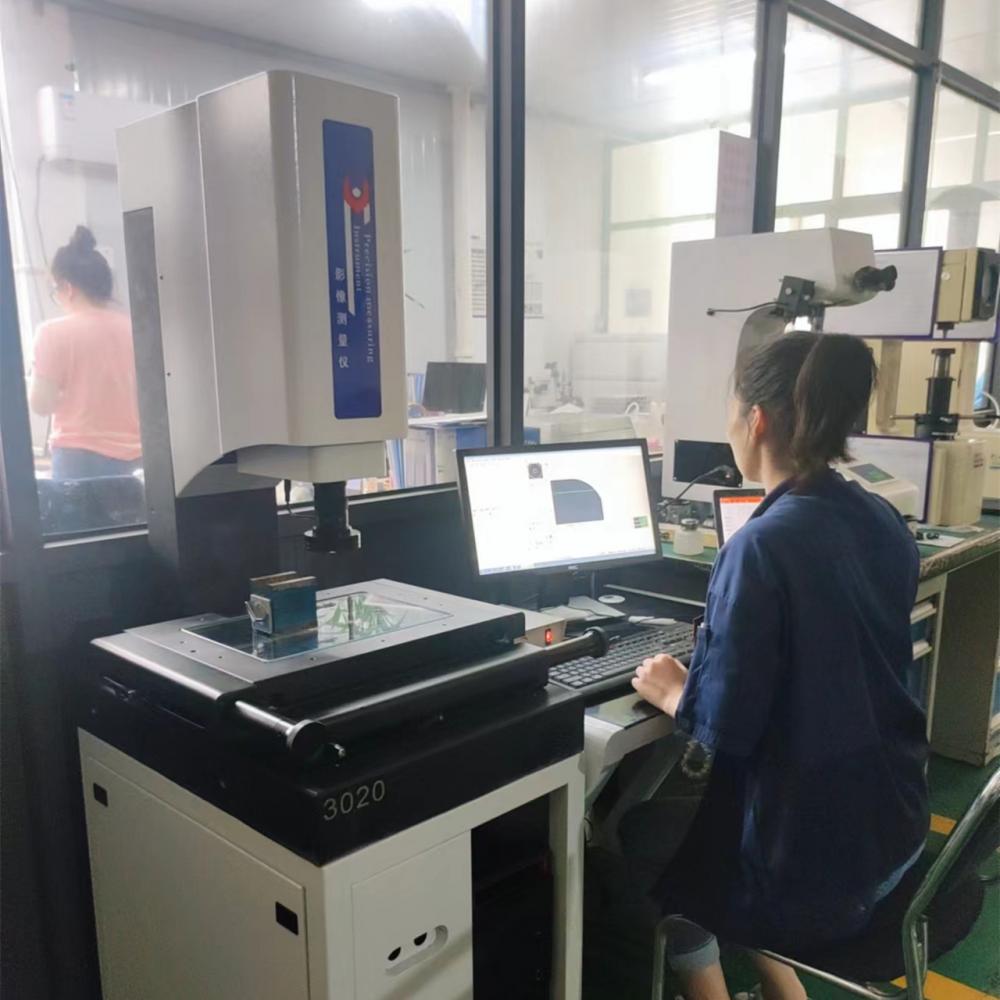

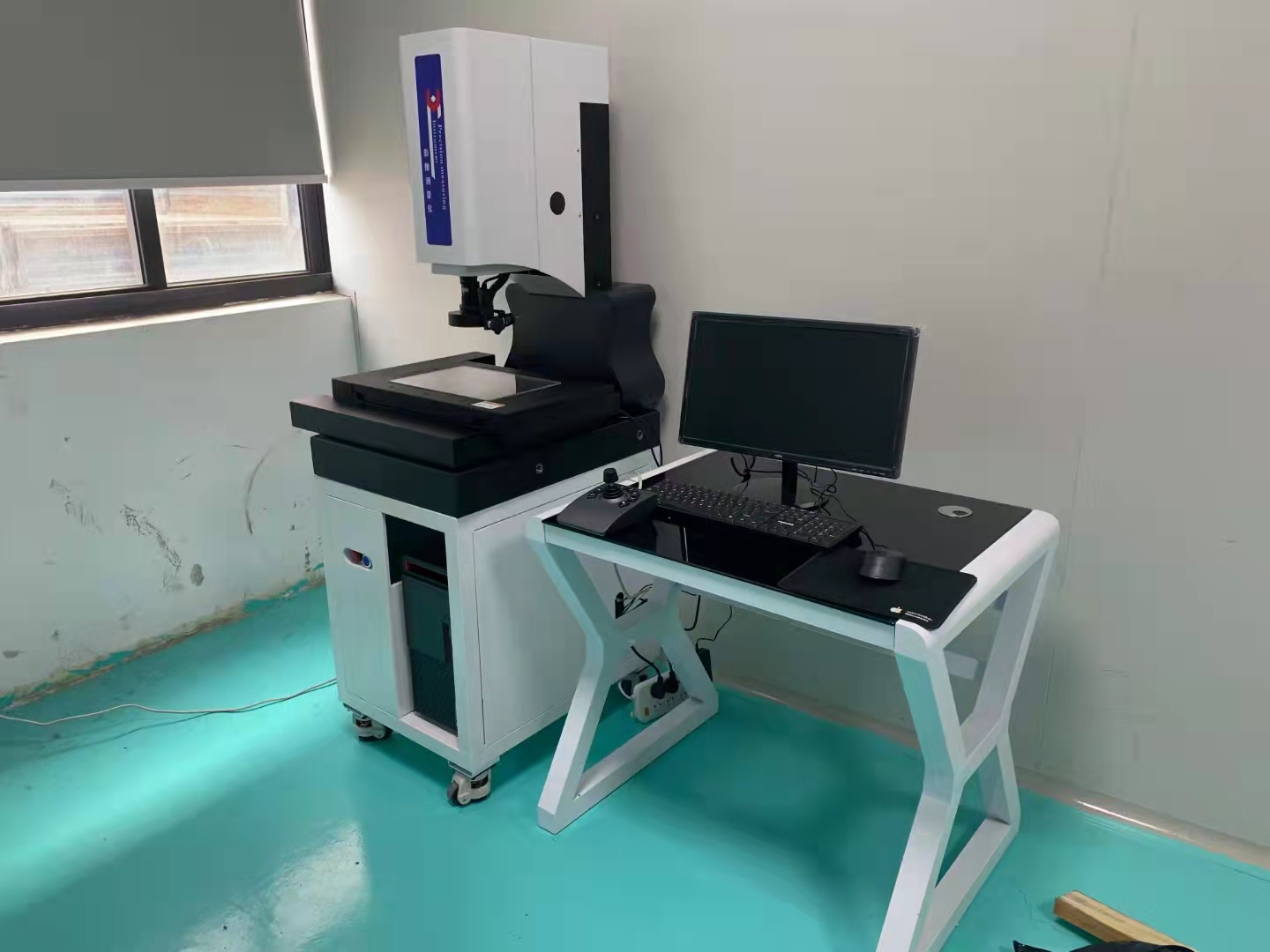

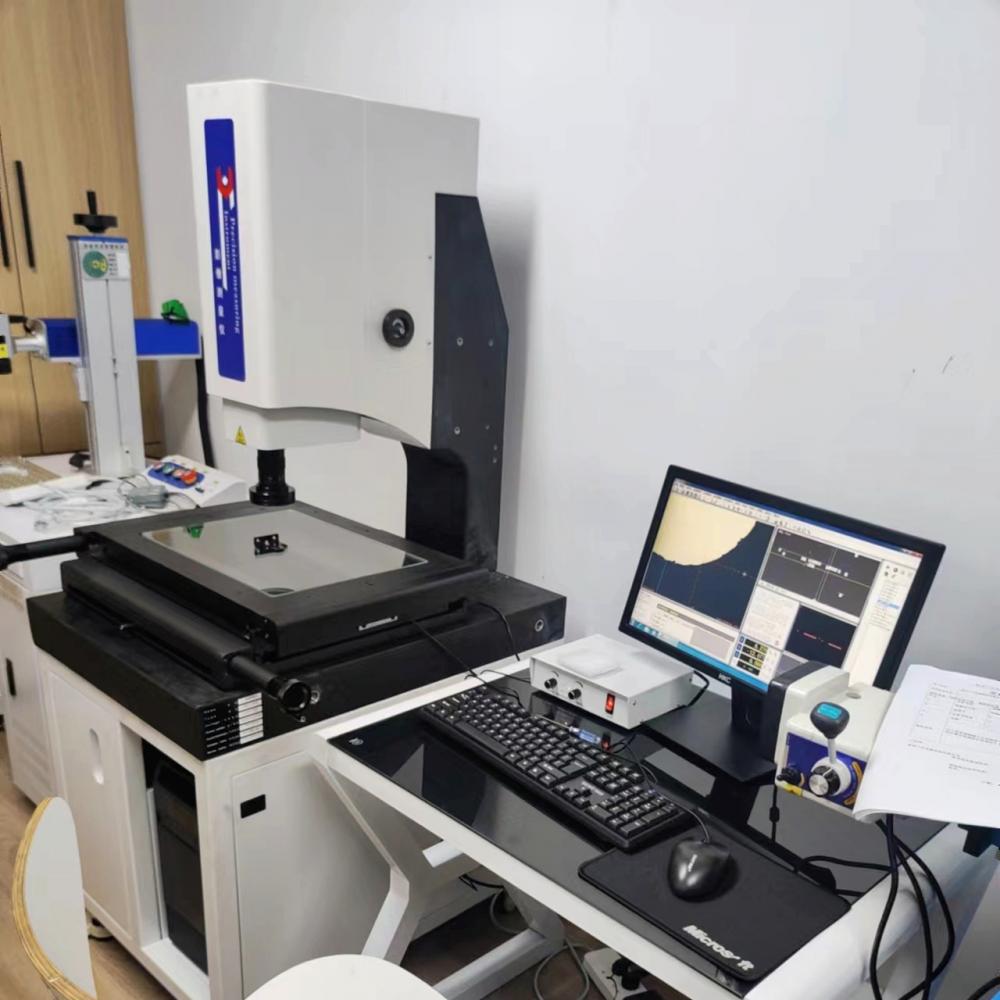

Customer Stories
